How Big Is a Cystoscopy Camera? Size and Specs
Explore the typical size ranges for cystoscopy cameras, what those measurements mean in practice, and how clinicians choose equipment for comfortable, effective procedures.
A cystoscopy camera is a compact endoscope assembly designed to pass through the urethra. In adult devices, the insertion diameter typically ranges from about 6 to 12 French (roughly 2.0 to 4.0 mm). The distal camera head is integrated and remains within the same envelope, with model-dependent variations that practitioners consider during selection.
What is a cystoscopy camera and why size matters
A cystoscopy camera is the tiny imaging core at the tip of a cystoscope, enabling real-time visualization of the urethra and bladder. The size of this camera assembly directly affects how easily the device can be inserted, navigated, and stabilized during the procedure. For clinicians and patients alike, understanding the size helps predict comfort, risk, and image quality. When you ask how big is a cystoscopy camera, the answer hinges on the combination of insertion diameter and distal optics. In practical terms, a camera that is too large may cause resistance or discomfort, while an undersized unit could limit features such as dual-view imaging or enhanced illumination.
In the clinical setting, technicians and physicians frequently balance patient anatomy with procedural goals. This balance is especially relevant in cases with narrowed urethras, prior surgeries, or pediatric patients, where size and flexibility become even more critical. The dimension of the camera influences sheath compatibility, sterilization considerations, and the choice between rigid and flexible cystoscopy approaches. Overall, the goal is to maintain a compact, reliable imaging core without compromising performance or safety.
Practical takeaway: The basic question about size is not merely about the camera tip; it encompasses how the entire assembly interacts with the patient’s anatomy and the clinical workflow.

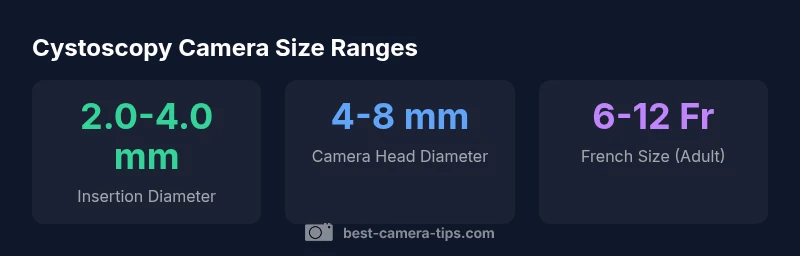

Cystoscopy size reference table
| Aspect | Typical Range | Notes |
|---|---|---|
| Insertion diameter | 2.0-4.0 mm | Common adult range |
| Camera head diameter | 4-8 mm | Integrated distal optics |
| French size (Fr) | 6-12 Fr | Indicative of insertion diameter |
| Scope length | 330-450 mm | Model-dependent |
Common Questions
What does 6 Fr mean for cystoscopy equipment?
Fr stands for French size, a unit of diameter. 1 Fr equals 0.33 mm, so 6 Fr is about 2.0 mm. This sizing helps determine whether a device will fit through the urethra and bladder access paths. Typical adult cystoscopes range from 6 to 12 Fr.
6 Fr corresponds to about 2 millimeters in diameter, which helps determine if the scope will fit through the urethra.
Is there a pediatric standard size?
Pediatric cystoscopes are smaller than adult versions. There is no single universal pediatric standard; sizes commonly range from a few Fr up to early teen ranges depending on the patient. Clinicians select based on age, anatomy, and procedure requirements.
Pediatric scopes are smaller, chosen based on the child’s anatomy and the procedure.
Are camera head diameters standardized?
Camera head diameters vary by model and manufacturer. Typical distal optics heads often range from about 4 to 8 mm, but exact dimensions depend on sensor size, illumination, and laser/optics integration.
Head sizes aren’t strictly standardized; they depend on the device and maker.
How does size impact sterilization and reuse?
Larger or more complex heads may require compatible sterilization methods and cycles. Always follow the manufacturer’s instructions and your facility’s sterilization protocols to preserve optics and ensure safety.
Follow both the device maker’s guidelines and your hospital’s sterilization rules.
Can I upgrade to a smaller camera head?
Upgrading often depends on compatibility with the endoscope channel and optics. Check vendor specs, service support, and whether a newer model integrates with your existing cystoscope system.
Check with the manufacturer about compatibility before upgrading.
Does smaller size affect image quality?
Smaller devices can involve trade-offs in sensor size or illumination. Modern compact cameras maintain high image quality, but you should assess sensor performance and illumination in real-use scenarios.
Smaller size can affect some performance aspects, but modern cameras remain high quality.
“In cystoscopy, every fraction of a millimeter counts for patient comfort and image stability; choosing the right size is as important as selecting illumination or resolution.”
The Essentials
- Size varies by model and procedure
- Most adult cystoscopes use 6-12 Fr insertion diameter
- Camera head and insertion diameter stay within the same envelope
- Read manufacturer specs for exact numbers
- Smaller size can improve comfort but may limit features
