What is a hardwired camera?

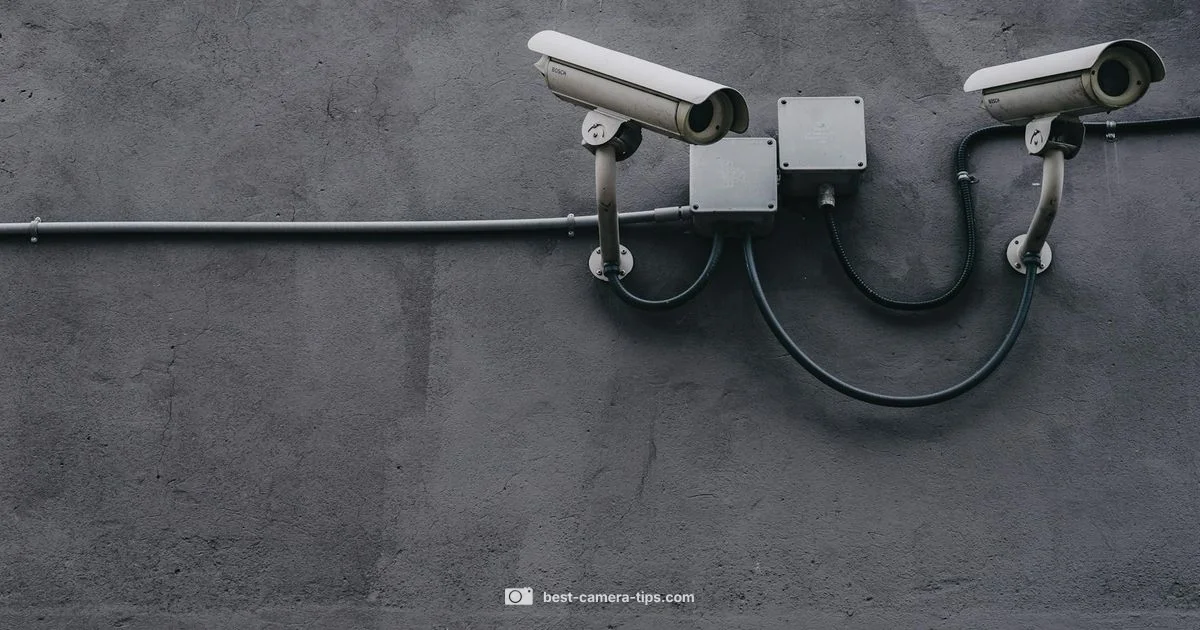

A hardwired camera is a surveillance camera that uses physical cables to receive power and transmit video data, typically to a DVR or NVR, and does not rely on a wireless network. This wiring approach creates a stable foundation for ongoing recording and monitoring, especially in homes and small businesses with fixed camera locations.

According to Best Camera Tips, hardwired cameras underpin many modern security systems by delivering consistent power and predictable data flow, which reduces common connectivity problems seen with Wi Fi dependent solutions. When you install a camera that is permanently connected to power and a data line, you minimize outages caused by battery drain, weak wireless signals, or router congestion. This reliability makes hardwired setups popular for entryway cameras, perimeter protection, and multi site installations. Beyond reliability, hardwired cameras often integrate more cleanly with existing security infrastructure such as NVRs, central power supplies, and professional monitoring services. This means you can focus on framing and image quality without worrying about intermittent feeds.

How hardwired cameras work

Hardwired cameras operate through two primary architectures: coaxial CCTV and PoE Ethernet. In coaxial systems, analog video signals travel on a coax cable from the camera to a DVR. Power is supplied separately through a dedicated transformer or a centralized power supply. In PoE systems, power and data share a single Ethernet cable; a PoE injector or switch supplies electricity, while an NVR or IP camera handles digital video. Both approaches yield reliable video, but PoE cameras simplify wiring and enable remote configuration. For most homeowners and small businesses, PoE networks provide easier scalability and better integration with modern security software. The difference between these systems matters when you plan long cable runs, multiple cameras, or future upgrades. When planning, consider how you will view footage, whether you need local recording, and how you will access cameras remotely.

Wired vs wireless: pros and cons

Compared with wireless cameras, hardwired models offer several advantages: stable power, consistent frame rates, reduced latency, and less susceptibility to interference from walls, microwaves, or neighboring networks. On the downside, installation is usually more involved, requiring cable routing, permits in some areas, and potential trenching. Costs can be higher upfront due to wiring and mounting hardware, but long term maintenance and reliability tend to offset this. According to Best Camera Tips analysis, the total cost of ownership for wired systems often remains competitive when you factor in fewer battery replacements and stronger coverage. For capture quality, wired systems also provide smoother playback and less jitter in challenging environments such as basements or outdoor corners with thick walls.

Wiring standards and options: coax vs PoE

Wired cameras come in two main flavors that affect how you wire and power them. Coaxial CCTV uses RG59 or RG6 plus separate power wiring, with BNC connectors connecting the camera to a DVR. This older approach is robust and familiar for long runs, but upgrading to newer equipment may require adapters and a compatible DVR. PoE cameras use standard Ethernet cables (Cat5e/Cat6) to carry both power and data over a single cable. A PoE injector or a PoE switch supplies power, and the NVR or IP camera handles video compression and network addressing. PoE simplifies installation, improves cable management, and supports remote configuration and firmware updates. When choosing, assess run length, environment, and whether you plan to expand the system in the future.

Installation considerations and best practices

Start with a site survey to identify optimal mounting points that maximize field of view while minimizing vulnerability to tampering. Plan routes that minimize signal loss and avoid power sharing with high demand devices. Use weatherproof housings for outdoor cameras and sealed conduit for outdoor runs. Maintain proper distance between cameras to prevent signal interference in PoE setups. Label cables clearly and document IP addresses and port mappings so future technicians can service the system quickly. If you are using PoE, ensure your switch or injector can deliver enough watts for all devices on the segment. Finally, test the system under real conditions, including night time and rain, to confirm image quality and reliability.

Maintenance, security, and troubleshooting

Perform periodic firmware updates and change default passwords to protect the system from unauthorized access. Keep DVR/NVR firmware current and use encrypted connections when possible. Inspect cables for wear, check weather seals, and monitor power supply health. If a feed drops or image quality degrades, check power levels, test the cable for continuity, and verify network configuration in your NVR software. A common pitfall is overloading a PoE switch; distribute cameras across multiple switches if needed and monitor heat. Consistent maintenance reduces false alarms and ensures reliable long term operation.

Common pitfalls and quick-start checklist

• Conduct a thorough site survey before mounting cameras. - Use appropriate conduit and weatherproof housings for outdoor cameras. - Verify PoE capacity and cable quality for reliable power and data. - Separate camera network from general home Wi Fi to improve security. - Maintain clear documentation of camera names, locations, and IP addresses. Quick-start checklist: map your camera positions, install mounting brackets, run cables with care, power up, configure NVR, test live view, and set up alerts.
