Thermal Imaging Camera for Drones: A Practical Guide

What is a thermal imaging camera for drones and how it works

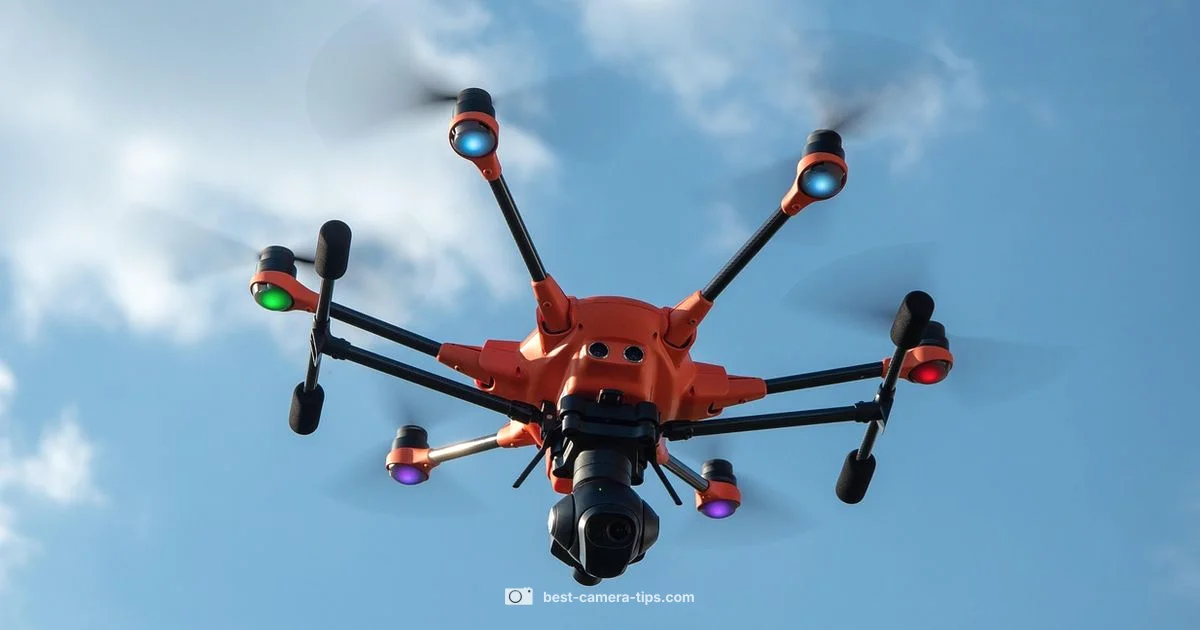

A thermal imaging camera for drones is a sensor that detects infrared radiation and converts it into a visible image that represents heat patterns. Unlike visible‑light cameras, thermal cameras see temperature differences, not color or texture. This capability is valuable for locating hotspots, assessing insulation, or spotting hidden problems in hard‑to‑reach areas.

According to Best Camera Tips, most drone‑grade thermal cameras use uncooled microbolometer arrays that respond to mid infrared wavelengths. They translate heat signatures into color palettes such as ironbow or rainbow, making hot areas stand out. Because this data reflects energy, it can reveal issues not visible to the naked eye, even through smoke, fog, or darkness. When mounted on a drone, the camera extends human vision to aerial perspectives, enabling rapid survey of large areas.

Development in this field emphasizes compact form factors, lower power draw, and better alignment with drone flight controllers. Operators need to calibrate the camera, understand thermal contrast, and interpret heat maps correctly. The right setup combines a light, balanced gimbal with stable power, so the thermal feed remains usable during flight. In short, thermal imaging on drones turns invisible heat into actionable visual information for professionals and enthusiasts alike.

Core specs to compare: resolution, sensitivity, and frame rate

When choosing a thermal imaging camera for drones, three core specs determine how well it will perform in the field: resolution, thermal sensitivity, and frame rate. Spatial resolution describes how finely heat differences are sampled across the scene; higher resolution yields more detail but increases data size and weight. Thermal sensitivity, often expressed as NETD, measures the camera's ability to distinguish small temperature differences; lower NETD values indicate crisper heat discrimination. Frame rate affects how smoothly heat scenes are captured, especially in moving flights; higher frame rates reduce motion blur and improve tracking of hot objects.

In practice, you should balance these specs with your drone’s payload capacity, flight time, and mission goals. For long patrols or search tasks, consider favorable frame rates and robust onboard processing for real-time interpretation. Color palettes impact readability; common schemes emphasize contrast between hot and cool areas. Environmental conditions such as dust, wind, and radiative heat from sun‑exposed surfaces can alter readings, so test your camera under typical operating conditions. Finally, verify sensor calibration and alignment with your drone’s stability system to ensure heat maps align with the ground truth.

Typical use cases for drone thermal imaging

Thermal imaging on drones unlocks capabilities across several fields. In search and rescue, heat signatures help locate people or animals more quickly in low visibility. In industrial inspection, technicians scan electrical panels, pipelines, and mechanical equipment for hotspots that precede failures. In building diagnostics, thermal data reveal insulation gaps, moisture intrusion, or air leaks that are invisible to the eye. Forestry and agriculture pilots use heat mapping to monitor plant stress or irrigation efficiency. Fire services may employ drones to assess wildfires or hotspots from a safe distance. Each scenario benefits from aerial perspective, rapid deployment, and repeatable data collection for trend analysis.

Effective use hinges on mission planning, including flight paths, altitude, and weather awareness. Integrating thermography data with regular RGB imagery enhances interpretation, while software tools allow creating overlays, generating thermal maps, and exporting data for reporting. Training operators to interpret heat patterns correctly reduces misreads and false positives. Overall, these use cases demonstrate how a thermal imaging camera for drones extends what professionals can detect from the air.

How to integrate with your drone: mounting, power, data handling

A successful thermal imaging setup starts with a secure mounting solution that keeps the sensor level and vibration-free. Choose a lightweight, balanced mount compatible with your drone model and its gimbal. Power considerations are critical: thermal cameras draw additional current, so verify your power budget and consider separate power rails if needed. Data handling is another key factor; many cameras stream live video, while some record locally or chip in with the drone’s flight controller. Storage capacity must accommodate high‑resolution thermal frames, especially during long missions. If real‑time feedback is important, ensure your ground control software can display thermal streams and allow quick interpretation. Camera alignment is essential; even small tilt can distort heat maps, so calibration procedures should be followed before any mission. Safety and legal guidelines should drive where you fly and how you share thermal data. Finally, pair the thermal camera with daylight RGB or MSX sensors if you need contextual information on the scene. In short, a well‑planned integration reduces setup time and yields more reliable thermal insights.

Budget ranges and finding value: where to spend and where to save

Quality, performance, and reliability converge in choosing a thermal camera for drones. If you are new to thermal imaging, prioritize a compact, well‑supported unit with decent thermal sensitivity and a reliable warranty. For professional or industrial work, investing in higher resolution sensors, broader temperature ranges, and robust software packages pays off over time because it improves detection capabilities and data reliability. It is smart to buy from manufacturers who provide firmware updates, calibration services, and access to educational resources. Consider the entire ecosystem: the drone platform, the camera, data storage, and the software used to analyze thermal imagery. While you may be tempted to chase the latest features, balance cost against mission needs and expected return on investment. Finally, plan for support and training resources to maximize value over the camera’s lifecycle. Best Camera Tips recommends evaluating total cost of ownership and prioritizing reliability, accuracy, and user‑friendly interfaces rather than chasing marginal gains.

Safety, regulations, and best practices

Operating thermal imaging drones requires awareness of local aviation rules, privacy concerns, and risk management. Always check current regulations for drone altitude, line of sight, and permitted thermal data collection in your area. Use appropriate personal protective equipment when inspecting hazardous sites and maintain a safe flight buffer around people and property. Thermal cameras can reveal sensitive information; adopt data handling practices that protect privacy and comply with organizational policies. Practice regular calibration, verify that the camera is properly mounted, and run test flights in controlled environments before real missions. Training and documentation help build muscle memory for interpreting heat maps and making quick, responsible decisions during flights. Finally, document lessons learned and share safety notes with your team to reduce repeat issues and improve overall safety.

Maintenance and long-term care for drone thermal cameras

Like any precision sensor, a thermal camera requires routine maintenance to preserve image quality. Clean lenses with appropriate lens tissue and avoid touching the sensor. Monitor for drift in alignment and re‑calibrate after impacts or after changing gimbals. Protect the camera from dust, moisture, and heat exposure; store it in a cooled, dry environment when not in use. Firmware updates from the manufacturer can improve stability and performance, so stay current with official releases. Regular checks of power connections and data cables prevent intermittent failures during missions. Keep a simple log of maintenance events, calibrations, and test results so you can track performance over time. By treating the thermal camera as a critical component of your drone system, you’ll maximize reliability and the usefulness of thermal data in real‑world operations. Best Camera Tips underscores that consistent care and practice are key to long‑term success.
