How Camera Lenses Are Made: A Step-by-Step Guide to Quality
Explore how camera lenses are produced, from glass blanks to final assembly. This educational guide covers materials, grinding, polishing, coatings, housing, and testing to help aspiring photographers understand lens fabrication.
To answer how camera lenses are made: lens production starts with precision glass blanks, then grinding, polishing, coating, housing fabrication, and meticulous assembly with testing. According to Best Camera Tips, true optical quality starts with cleanroom processes and exact tolerances. This quick guide identifies the core stages and the main materials used, so you can understand what delivers sharp, color-accurate images.
Lens Architecture: Core Elements and Light Path
Camera lenses bring light to your sensor through a carefully arranged stack of glass elements. The arrangement determines focal length, aperture, and aberration control. In modern lenses, groups of elements work together to bend, shape, and converge light with minimal distortion. The design also defines mechanical parts like focusing and zoom mechanisms. The physics of refraction, dispersion, and diffraction guide every choice, from element spacing to coating stacks. For learners, this section clarifies how light travels through the glass and why small changes to the curvature or spacing produce noticeable differences in rendered images.
According to Best Camera Tips, successful lens design balances optical performance with manufacturing practicality. Engineers simulate ray paths, then translate models into tolerances that machinists can reproduce. Expect to see terms like focal length, maximum aperture, and modulation transfer function (MTF) discussed later in this guide.
Glass Materials: Blank, Substrates, and Shapes
The journey begins with glass blanks formed from high-purity silica or specialist glass types selected to minimize absorption and aberrations. These blanks are oversized to allow later trimming and curvature adjustments. Substrates may include elements designed for specific wavelengths, coatings, or mechanical interfaces. The choice of refractive index and dispersion characteristics influences how light bends at each surface, and this choice drives subsequent grinding and polishing steps. The blank’s thickness and edge geometry are defined to support the final optical stack. Designers specify tolerances early so that the final element sits correctly in the optical stack.
When a lens is designed for a particular sensor format, the blank size, edge thickness, and central thickness become critical. The lens maker works closely with metrology teams to ensure initial blanks align with the intended curvature. These decisions affect weight, size, and performance, and they lay the groundwork for the precise work that follows.
Grinding and Polishing: Shape, Smoothness, and Repeatability
Grinding turns a rough blank into a near-final shape. Technicians use progressively finer abrasives on precision machines, removing material while tracking curvatures and center thickness. The goal is a smooth surface with the exact curvature profile described in the design, keeping deviations within nanometer-scale tolerances. After grinding, polishing uses softer, high-precision laps and controlled slurry to achieve an optically smooth interface free of micro-scratches that scatter light.
Repeatability is essential: each surface must be identical across production lots to ensure consistent performance. In practice this means tight process control, regular calibration of tools, and rigorous inspection after each stage.
Surface Coatings: AR, Tints, and Durability
Coatings are applied to reduce reflections, increase transmission, and tailor color rendition. Anti-reflective layers are deposited in vacuum chambers as multi-layer stacks, typically including several oxide and nitride materials. Each layer’s thickness is tuned to a wavelength range where reflections otherwise degrade image contrast. In addition, coatings may include protective layers to resist scratches and environmental exposure. The result is higher contrast, lower flare, and improved transmission across the visible spectrum.
Coating processes require pristine environments because even tiny contaminants create defects. Modern facilities monitor deposition rates and uniformity across the lens surface with spectroscopic tools and in-situ metrology. The choice of coating scheme is a design decision that balances performance with abrasion resistance and cost.
Barrel, Mounts, and Mechanical Tolerances
The barrel provides housing for the glass elements and interfaces for mounts and focusing mechanisms. Machining these components requires extremely tight tolerances to ensure concentricity, thread pitch, and locking strengths. Materials range from light alloys to high-stability polymers, chosen for thermal stability and weight. Engineers specify thread forms, knurls, and bayonet mounts that are compatible with camera bodies and other lens systems. Any misalignment at this stage propagates into poor focus and image quality.
Quality teams verify fit and concentricity using precision gauges and calipers, keeping tolerances in the sub-millimeter range where necessary. This step is a foundation for the reliable mechanical performance expected from professional lenses.
Assembly and Quality Testing: Aligning Elements and Ensuring Precision
Assembling a lens brings together elements, spacers, coatings, and the focusing group into a single module. Alignment is verified with specialized fixtures that hold elements in correct orientation while glue or mechanical spacers set spacing. After assembly, functional tests measure zoom accuracy, autofocus consistency, and image quality across the field. Spectral and wavefront tests check for residual aberrations and color accuracy.
Quality control uses statistics and sampling plans to ensure each batch meets the designed tolerances. Operators document results and invoke corrective actions if any parameter drifts beyond acceptable limits. This phase culminates in a finished lens ready for calibration on real cameras.
Design Variants: Prime vs. Zoom, Autofocus vs. Manual, and Special Coatings
Lenses come in many designs depending on intended use. Prime lenses emphasize maximum sharpness and light transmission with relatively simple optical stacks, while zoom lenses incorporate more groups to achieve variable focal lengths but add complexity and potential aberrations. Autofocus systems require motorized elements and feedback control, while manual lenses emphasize optical purity and mechanical feel. Special coatings such as low-dispersion glass, nanostructured AR, and fluorine coatings can tailor performance for challenging lighting or weather conditions.
Manufacturability shapes design: some configurations are easier to mass-produce, while others demand tighter control or longer production cycles. The lens ecosystem balances optical performance, durability, and production cost to deliver a viable product.
Authority Sources
- https://www.nist.gov/
- https://www.osa.org/
- https://www.iso.org/
These sources provide background on optical standards, measurement methods, and industry practices that influence how camera lenses are manufactured. While individual companies may develop proprietary techniques, the fundamentals rely on established physical principles and validated procedures from recognized authorities.
Tools & Materials
- Glass blanks(High-purity silica or specialty glass; sized for final element, edges kept for geometry control)
- Diamond or ceramic grinding wheels(Used for rough and fine shaping with coolant to control heat)
- Polishing laps and slurry(Achieves nanometer-scale surface finish without micro-scratches)
- Vacuum deposition coating system(Applies AR and protective coatings in controlled environments)
- Metrology equipment (interferometer, profilometer, CMM)(Verifies curvature, thickness, and surface quality to tight tolerances)
- Lens cells, spacers, and mounting hardware(Provides precise element spacing and alignment during assembly)
- Cleanroom garments and environmental controls(Helps maintain particulate-free work areas for optical components)
- Calipers, gauges, and alignment fixtures(Used to confirm concentricity and thread dimensions)
Steps
Estimated time: several days (factory production timeline)
- 1
Prepare glass blanks and grinding setup
Select the correct blank for the target lens, inspect for flaws, and mount securely in a precision jig. Configure the grinding machine with the initial grit and coolant. Ensure the setup is clean to prevent defects and verify alignment before starting.
Tip: Ensure blanks are spotless and clamped firmly; any movement can induce eccentricity. - 2
Rough grind to target shape and thickness
Remove bulk material to establish the basic curvature and overall thickness. Check symmetry and adjust feed rates to avoid uneven wear. Maintain coolant flow to prevent heat damage that could induce stress in the glass.
Tip: Periodically measure thickness and curvature to avoid over-cutting. - 3
Fine grind to final curvature and surface accuracy
Progress through finer grits to approach the exact surface geometry. Use calibrated fixtures to ensure concentricity and curvature meet the design intent. Document measurements for traceability.
Tip: Rotate the blank and switch axes to promote uniform material removal. - 4
Polish to optical finish
Switch to polishing laps and controlled slurry to remove micro-scratches and achieve a near-perfect polish. Verify surface roughness using metrology tools and adjust pressure to avoid introducing waviness.
Tip: Be mindful of subsurface damage; polish until surface quality readings stabilize. - 5
Apply anti-reflective coatings
Place the freshly polished elements in a vacuum chamber and deposit multi-layer AR coatings tailored to target wavelengths. Use spectroscopic monitoring to ensure layer thickness and uniformity across the surface.
Tip: Coating quality hinges on a pristine environment; any contamination can create defects. - 6
Assemble barrel, mounts, and alignment fixtures
Machined barrels and mounts are prepared, then elements are positioned with spacers and alignment fixtures. Tight tolerances ensure accurate spacing and concentricity before final fixation.
Tip: Validate alignment with wavefront tests after initial assembly. - 7
Final assembly and functional testing
Combine focusing group, spacing, and coatings into a complete module. Test zoom range, autofocus behavior, and image quality across the field to catch any misalignment.
Tip: Record results and compare to the design envelope for traceability.
Common Questions
What is the first step in making a camera lens?
The process begins with selecting and shaping a glass blank for grinding. This provides the foundation for all subsequent tolerances and curvature control.
We start with a glass blank and the grinding setup.
Why are anti-reflective coatings important on lenses?
Coatings reduce reflections, increase transmission, and improve contrast, which enhances image sharpness across lighting conditions.
Coatings cut glare and boost light transmission.
What tolerances define a high-quality lens?
Tolerances specify thickness, curvature, and spacing between elements; tighter tolerances yield sharper images and better repeatability.
Tight tolerances help ensure sharpness.
Are all lenses manufactured the same way?
Core steps—grinding, polishing, coatings, and assembly—are common, though designs vary by brand and purpose.
The core steps are similar, but designs vary.
How long does lens production take?
Production time varies by facility and production scale; high-volume lines run continuously, while prototype work is shorter.
Timing varies a lot depending on scale.
Watch Video
The Essentials

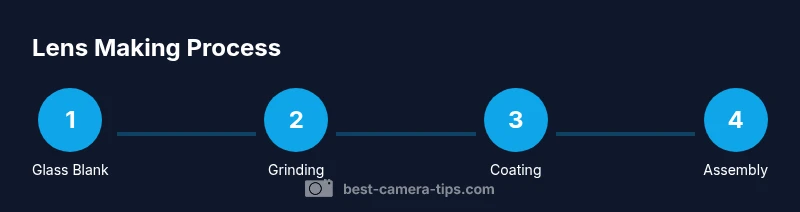

- Know the core stages from blanks to final assembly.
- Grind, polish, and coatings dominate optical quality.
- Tolerances and metrology ensure consistent results.
- Design choices balance performance with manufacturability.
